What different Liquid leak containment piping system rom double containment or secondary containment system

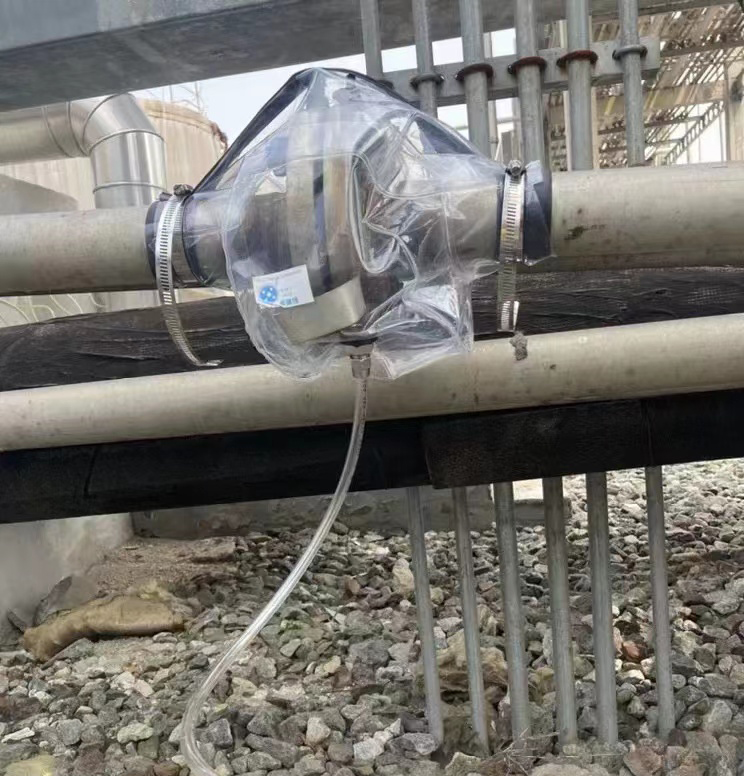

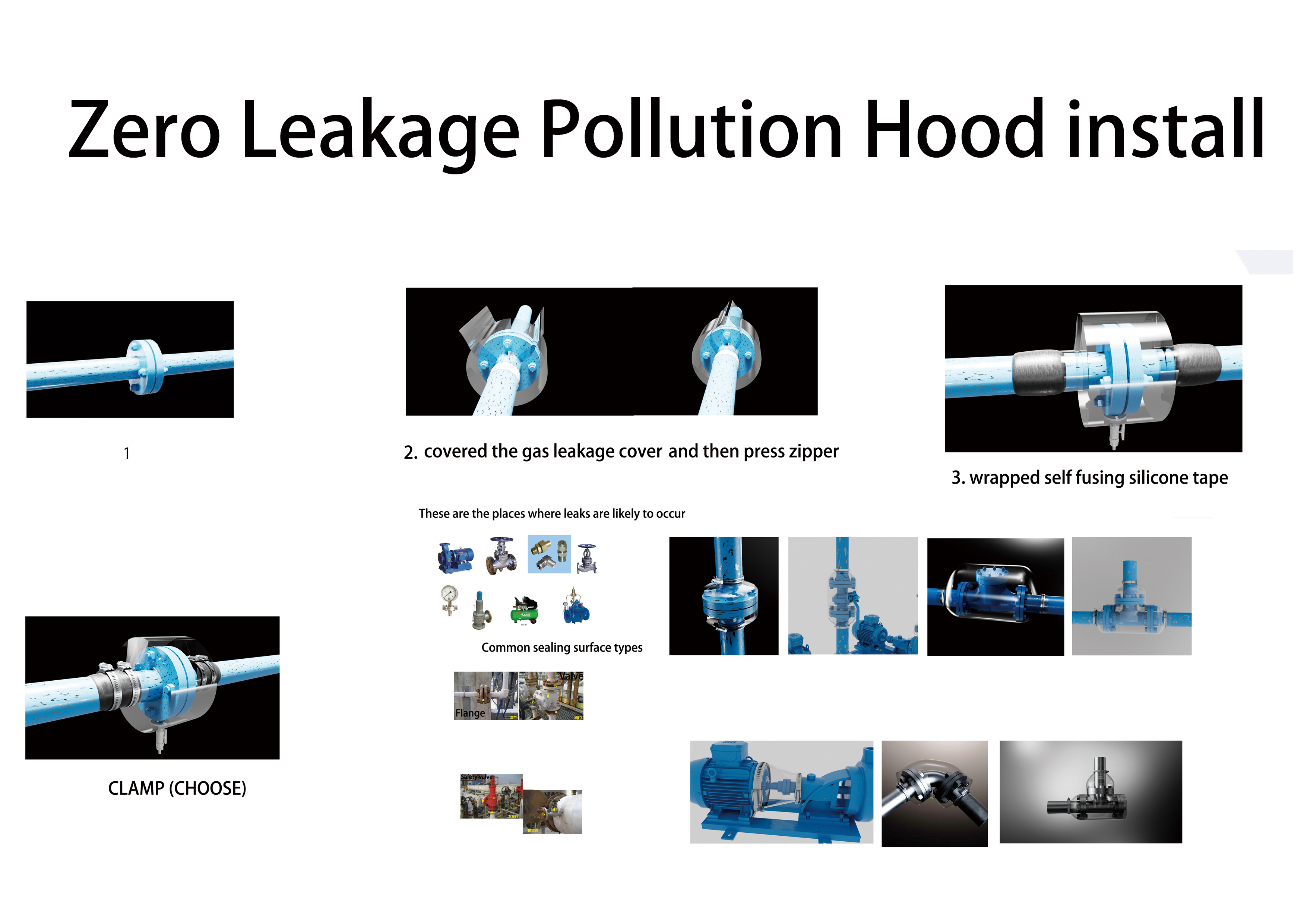

Liquid leak containment piping system, is different from double containment or secondary containment system is not the same, these systems can only be alone on the leakage prone place containment protection, such as flange, pipe fittings, valves and pumps. Installation is simple and inexpensive, and can be avoided if you want to splash cover does not provide effective protection against leaks, these liquid leaks using flexible and transparent materials, such as PVC and FEP, PU, etc., leaks and visible, the cover can retain a certain volume of leaking liquid, cover the end of the pipe using the general use of self-dissolving silica gel and other plugging technology, the middle of the zipper airtight technology, simple installation, inexpensive. These systems are typically used in applications where the risk of leaks or spills could have a significant impact on the environment, health or safety, such as chemical processing plants, fuel storage facilities and wastewater treatment plants.
Liquid leak-proof piping systems typically consist of the following components:
Primary piping: Primary piping is the inner pipe that transports liquids such as chemicals, fuels or wastewater. This piping is usually made of materials compatible with the liquid being transported, such as PVC, CPVC, HDPE or stainless steel.
Leak shield: Acts as a barrier to contain the pipe where it is prone to leaks or spills. Secondary piping is typically made of materials that are resistant to the fluid being conveyed and can withstand the environmental conditions of the installation.
Leak Detection System: Generally made of transparent material. Leaks and visible. The system may also include sensors, alarms or visual indicators to alert personnel to potential leaks.
Translated with DeepL
Liquid leak-proof piping systems typically consist of the following components:
Primary piping: Primary piping is the inner pipe that transports liquids such as chemicals, fuels or wastewater. This piping is usually made of materials compatible with the liquid being transported, such as PVC, CPVC, HDPE or stainless steel.
Leak shield: Acts as a barrier to contain the pipe where it is prone to leaks or spills. Secondary piping is typically made of materials that are resistant to the fluid being conveyed and can withstand the environmental conditions of the installation.
Leak Detection System: Generally made of transparent material. Leaks and visible. The system may also include sensors, alarms or visual indicators to alert personnel to potential leaks.
Drain or Catch Basin: The system may include a drain and control valve or catch basin to collect any leaking liquid in the secondary piping for proper disposal and to minimize environmental impact.
